VOOPOO DRAG S2 – 60W PnP X Pod Mod with 2500mAh Battery
VOOPOO DRAG S2 is a rechargeable 60W pod mod featuring a built-in 2500mAh battery, a 5ml PnP X DTL cartridge and the advanced GENE.TT 2.0 chipset. Designed with adjustable power, three operating modes and a 0.96-inch TFT display, the DRAG S2 combines the functionality of a regulated vape mod with the compact design of a refillable pod system.
The standard DTL package includes two replaceable PnP X coils: a 0.3Ω coil pre-installed in the cartridge and an additional 0.2Ω coil. The device also features adjustable top airflow, USB Type-C charging and the PnP X atomization platform.
This product guide from Asad Smoking explains the DRAG S2 specifications, included accessories, coil compatibility, power settings and maintenance requirements for adults researching rechargeable vape devices in the UAE.
What Makes the VOOPOO DRAG S2 Different?
The DRAG S2 is designed around three major components: the GENE.TT 2.0 chipset, the PnP X coil platform and its integrated 2500mAh rechargeable battery.
Unlike basic pod systems with fixed power output, the DRAG S2 offers adjustable wattage and multiple operating modes. Its 0.96-inch display provides information about the selected settings and device operation.
Key Features
- 2500mAh built-in rechargeable battery
- Adjustable 5W–60W power output
- 5ml PnP X DTL cartridge
- Two included PnP X coils: 0.3Ω and 0.2Ω
- GENE.TT 2.0 chipset
- SMART, RBA and ECO operating modes
- 0.96-inch TFT display
- Adjustable top airflow system
- Side-filling cartridge design
- USB Type-C charging cable included
- Six electronic protection functions
- Zinc alloy and leather construction
2500mAh Battery and USB-C Charging
The VOOPOO DRAG S2 contains a built-in 2500mAh rechargeable battery. This integrated design eliminates the need for removable external batteries.
The battery supplies power to the device’s regulated output system, which supports wattage adjustment from 5W to 60W.
Battery duration varies depending on selected wattage, coil resistance, frequency of use and battery condition. Higher output settings generally consume more energy than lower settings.
USB Type-C Charging
The DRAG S2 package includes a USB Type-C charging cable. The charging specification provided for this kit is 5V/2A.
Charging should follow the manufacturer’s instructions and use suitable charging equipment. Actual charging time varies with the power source, cable and battery condition.
GENE.TT 2.0 Chipset – Three Operating Modes
The DRAG S2 uses VOOPOO’s GENE.TT 2.0 chipset to manage power output and operating functions.
The chipset supports three selectable modes, allowing the device to operate with different power-management configurations.
SMART Mode
SMART Mode automatically identifies the installed compatible coil and selects an appropriate power setting.
This mode is designed to simplify power management and help reduce the risk of selecting an unsuitable wattage.
RBA Mode
RBA Mode allows manual power adjustment within the device’s 5W–60W operating range.
The selected wattage should remain within the recommended operating range of the installed coil.
ECO Mode
ECO Mode is designed to reduce energy consumption. VOOPOO advertises an improvement of more than 10% in operating duration under its specified testing conditions.
Actual battery savings depend on usage and operating settings.
PnP X DTL Cartridge – 5ml Capacity
The standard VOOPOO DRAG S2 package includes one PnP X DTL Cartridge with a 5ml e-liquid capacity.
The cartridge uses a side-filling system and is designed for replaceable PnP X coils.
A 2ml cartridge version is available for TPD-regulated markets. The standard package described here contains the 5ml DTL version.
The cartridge connects magnetically to the device, allowing removal for refilling, cleaning and coil replacement.
Adjustable Top Airflow
The PnP X cartridge features an adjustable top-airflow system.
Air enters through the upper section of the cartridge, with the adjustment mechanism allowing the airflow opening to be changed.
VOOPOO designed this arrangement to help manage condensation and reduce the likelihood of liquid escaping through the airflow system.
Leak-resistant construction reduces certain leakage risks but does not guarantee completely leak-free operation.
Two PnP X Coils Included
One important advantage of the VOOPOO DRAG S2 package is that it includes two separate replaceable coils.
These coils have different resistance values and recommended operating ranges.
PnP X 0.3Ω Coil – 32W to 40W
The PnP X 0.3Ω coil comes pre-installed in the standard DTL cartridge.
VOOPOO lists its recommended operating range as 32W–40W. The manufacturer categorizes this coil for DTL and RDL operation.
PnP X 0.2Ω Coil – 40W to 60W
The package also includes one separate PnP X 0.2Ω coil.
This coil has a recommended operating range of 40W–60W and is categorized for DTL operation.
Because the DRAG S2 has a maximum output of 60W, the included 0.2Ω coil operates within the device’s rated power range.
PnP X Platform and Coil Technology
The PnP X platform is a coil and cartridge system developed by VOOPOO for compatible devices.
The manufacturer describes the platform as incorporating an improved atomization structure and four-layer leak-resistant design.
VOOPOO advertises endurance of up to 100ml of e-liquid per PnP X coil under specified testing conditions.
This is a manufacturer performance claim rather than a guaranteed coil lifespan. Actual results depend on liquid composition, operating wattage, maintenance and usage patterns.
Important Coil Compatibility Information
PnP X coils belong to a separate compatibility platform from the older VOOPOO PnP coil series.
They should not be assumed to fit cartridges designed exclusively for the original PnP platform.
Always check the exact cartridge and coil model before installing a replacement.
0.96-Inch TFT Display and Controls
The VOOPOO DRAG S2 features a 0.96-inch TFT display.
The screen provides an interface for reviewing device information and adjusting available operating settings.
The GENE.TT 2.0 system also includes a menu interface for selecting SMART, RBA and ECO modes.
The combination of a display and adjustable controls distinguishes the DRAG S2 from simpler automatic pod devices without screens.
VOOPOO DRAG S2 Technical Specifications
- Brand: VOOPOO
- Model: DRAG S2
- Device Category: Rechargeable Pod Mod Kit
- Battery: 2500mAh Built-in
- Output Power: 5W–60W Adjustable
- Output Voltage: 3.2V–4.2V
- Supported Resistance: 0.1Ω–3.0Ω
- Chipset: GENE.TT 2.0
- Operating Modes: SMART / RBA / ECO
- Display: 0.96-inch TFT
- Cartridge: PnP X DTL
- Cartridge Capacity: 5ml
- TPD Cartridge Capacity: 2ml
- Filling Method: Side Fill
- Included Coil 1: PnP X 0.3Ω (32W–40W)
- Included Coil 2: PnP X 0.2Ω (40W–60W)
- Airflow: Adjustable Top Airflow
- Charging Port: USB Type-C
- Charging Specification: 5V/2A
- Body Material: Zinc Alloy + Leather
- Country of Manufacture: China

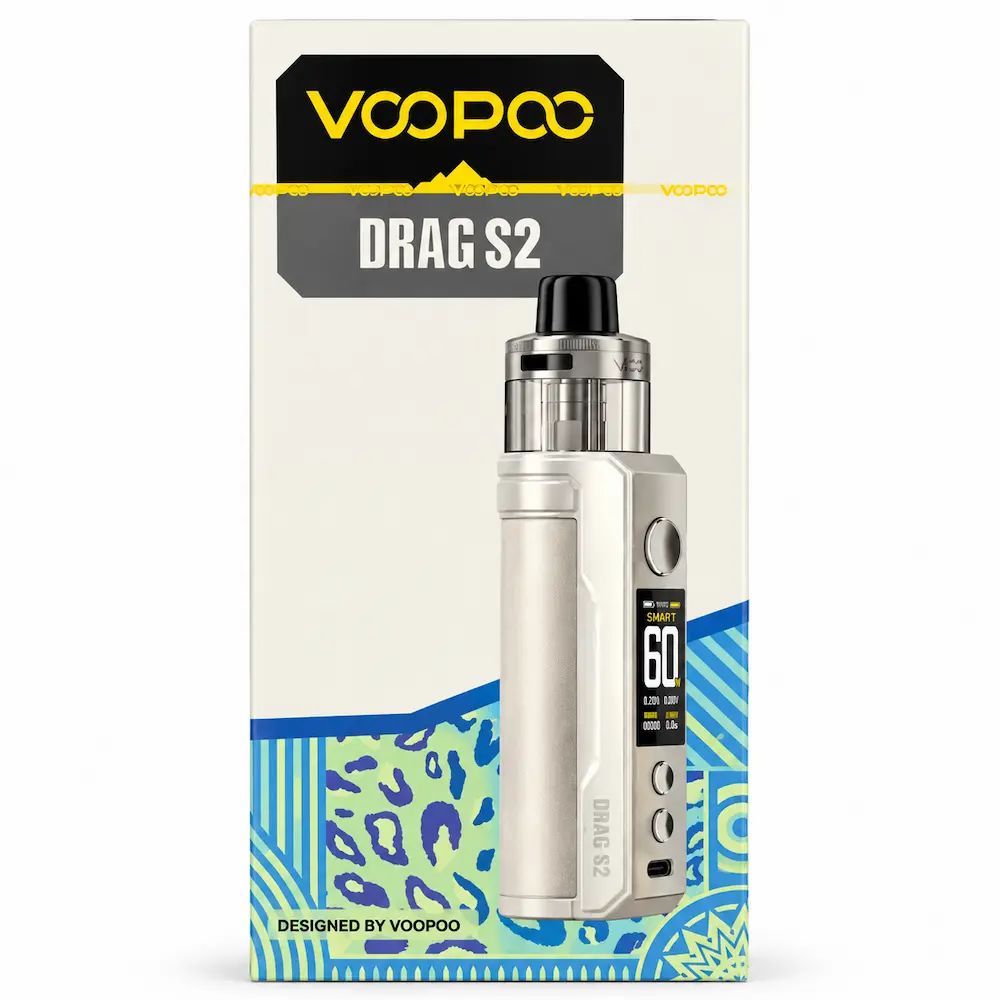

What’s Included in the VOOPOO DRAG S2 Box?
The standard DTL package contains the following items:
- 1 × VOOPOO DRAG S2 Device (2500mAh)
- 1 × PnP X DTL Cartridge (5ml)
- 1 × PnP X 0.3Ω Coil (Pre-installed)
- 1 × PnP X 0.2Ω Coil
- 1 × PnP X Platform Card
- 1 × USB Type-C Charging Cable
- 1 × User Manual
E-liquid is not listed among the standard package contents.
How to Prepare the DRAG S2 Cartridge
Correct cartridge preparation helps support normal operation and reduce the risk of damaging a new coil.
- Confirm that the installed coil is compatible with the PnP X DTL cartridge.
- Check that the coil is correctly seated in the cartridge.
- Open the side-filling port and add a compatible e-liquid.
- Close the filling plug securely.
- Allow the cartridge to stand for at least five minutes before initial use, following VOOPOO’s instructions.
- Install the cartridge and select a suitable power setting for the coil.
VOOPOO recommends filling the cartridge to approximately two-thirds of its capacity during preparation.
For the included 0.3Ω coil, the published range is 32W–40W. For the included 0.2Ω coil, the published range is 40W–60W.
Six Electronic Safety Protections
The DRAG S2 incorporates six electronic protection functions:
- Overtime protection
- Short-circuit protection
- Overcharge protection
- Output overcurrent protection
- Low battery protection
- Chip overtemperature protection
These functions are designed to respond to specified electrical conditions. They do not eliminate all risks associated with rechargeable battery devices.
VOOPOO DRAG S2 vs Basic Pod Systems
When comparing the DRAG S2 with simpler pod devices, several differences are relevant.
The DRAG S2 provides adjustable output up to 60W, a TFT display and three selectable operating modes. Its PnP X cartridge uses separately replaceable coils, whereas some compact pod systems use cartridges with integrated coils.
The 5ml DTL cartridge also differs from smaller refillable cartridges commonly found in compact pod devices.
These characteristics make the DRAG S2 a distinct type of rechargeable pod mod rather than a basic fixed-output pod system.
VOOPOO DRAG S2 in Dubai, Ajman, Sharjah and UAE
Adults researching VOOPOO DRAG S2 in the UAE can identify this model through its 2500mAh battery, adjustable 60W output, 5ml PnP X DTL cartridge and two included replacement coils.
Asad Smoking provides technical information about rechargeable vape devices and related accessories for customers comparing product specifications in Dubai, Ajman, Sharjah and across the UAE.
For additional device models, visit the
Vape Devices UAE
category.
Compatible E-Liquid Information
The standard PnP X DTL cartridge is intended for compatible e-liquids. VOOPOO publishes a recommended VG range of 50%–70% for the DTL version.
Liquid suitability depends on coil specifications and manufacturer guidance. Nicotine concentration limits published for device compatibility should not be interpreted as evidence that nicotine use is safe.
Explore the
Vape Juices UAE
category for information about e-liquid products.
Official VOOPOO DRAG S2 Product Information
For detailed manufacturer specifications, coil recommendations, operating instructions and compatibility information, refer to the
official VOOPOO DRAG S2 product page.
Frequently Asked Questions About VOOPOO DRAG S2
What is VOOPOO DRAG S2?
VOOPOO DRAG S2 is a rechargeable pod mod with a 2500mAh battery, adjustable 5W–60W output and a 5ml PnP X DTL cartridge.
What is the battery capacity of DRAG S2?
The device contains a built-in 2500mAh rechargeable battery.
What is the maximum wattage?
The maximum adjustable output is 60W.
How many coils come with the DRAG S2?
The standard DTL package includes two PnP X coils: one 0.3Ω coil pre-installed and one additional 0.2Ω coil.
What wattage should the 0.3Ω coil use?
VOOPOO specifies an operating range of 32W–40W for the PnP X 0.3Ω coil.
What wattage should the 0.2Ω coil use?
The PnP X 0.2Ω coil has a published operating range of 40W–60W.
Is the DRAG S2 cartridge top-fill or side-fill?
The standard PnP X DTL cartridge uses a side-filling system.
Does VOOPOO DRAG S2 have a display?
Yes. The device features a 0.96-inch TFT screen.
What operating modes are available?
The DRAG S2 supports SMART, RBA and ECO modes through the GENE.TT 2.0 chipset.
Can older PnP coils be used in the PnP X cartridge?
The PnP X platform is different from the original PnP platform. Replacement coil compatibility should be verified before installation.
Does the package include a charging cable?
Yes. One USB Type-C charging cable is included in the standard package.
Where is VOOPOO DRAG S2 manufactured?
The device is manufactured in China.
